主要技术参数 / Main specifications
|
NO. |
Items |
Unit |
Main specification |
|
1 |
压制厚度/Material thickness |
mm |
0.4-1.0 |
|
2 |
成型速度/Working speed |
m/min |
10-20 |
|
3 |
成型道数/Roll station |
/ |
14channels[depend on the profile] |
|
4 |
主机功率/Host power |
kw |
5.5 |
|
5 |
液压站功率/Hydraulic station power |
kw |
5.5 |
|
6 |
控制系统/Control system |
/ |
Panasonic PLC |
|
7 |
转动方式/Drive |
/ |
1.0 inch single-row chain |
|
8 |
剪切材料/Shear material |
/ |
Cr12Mov,quenched HRC 58-62℃ |

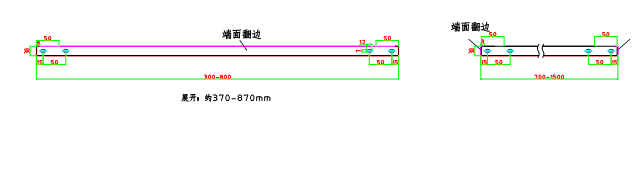

版型图 / Drawings

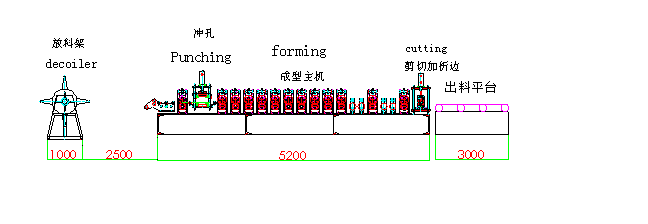

流程图 / Flow chart
